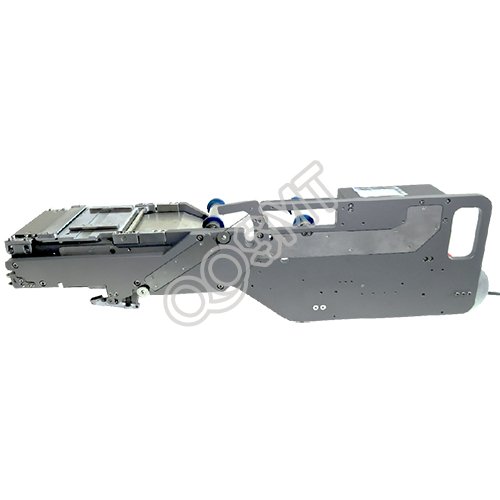

Yamaha labe feeder for YAMAHA mounter YS YSM series
    • Yamaha labe feeder for YAMAHA mounter YS YSM series

    Yamaha labe feeder for YAMAHA mounter YS YSM series

    Yamaha YS label feeder
    40mm
    90mm
    140mm

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS

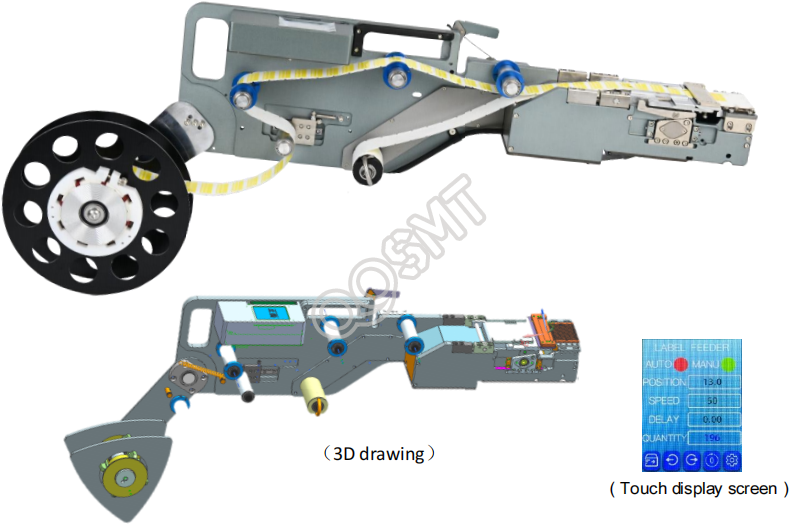

    This label feeder model is suitable for the Yamaha YS/YSM series pick-and-place machines, including YS12,YS24,YSM10,YSM20 etc.

    Model                          L*W*H(mm)           Weight                    Label Size
    LFYAMAHA-32 YS        620*40*170            3.6KG               L:2-40MM, W:5-23MM
    LFYAMAHA-60 YS        620*90*205            5KG                  L:5-58MM,W:L2-40MM
    LFYAMAHA-100 YS      620*140*205          5.7KG               L:2-40MM,W:5-98MM


    Precision:  ±0.2MM
    Feeding Speed:  Speed1-100
    Feeding precision:  ±0.5°
    Positon Adjustment:  Touch Panel Adj.
    Voltage:  DC 24V
    Current Average:  80MA Peak 1A
    Driving motor:  Servo motor
    Applicable package:  Roll paper tape Packaging Tape
    Suitable type:  LabelsMetal PiecesFoamPlastic…
    Columns per row:  1-12(The number of optical fibers can be customized）
    Time Interal:  0.1-2S
    Drive Roller Unit:  Forward push stripping
    Product account:  0-9999999n
    Wheel Diameter:  d：76.2mm D：200mm(Other sizes can be customized）
    Material:  Hard Aluminium+Finishing
    Platform material:  Metal spray selectable,White/Red Silica gel
