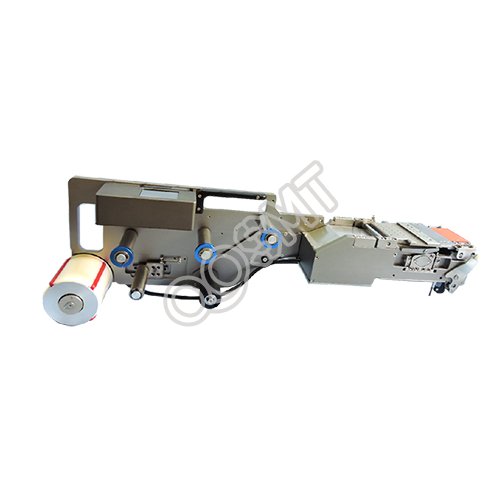

Yamaha label feeder for YAMAHA YV88 YV100 mounter
    • Yamaha label feeder for YAMAHA YV88 YV100 mounter

    Yamaha label feeder for YAMAHA YV88 YV100 mounter

    Yamaha YV label feeder
    90mm
    140mm

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS
    This label feeder model is suitable for the Yamaha YV series pick-and-place machines, including YV88,YV100II,YV100X,YV100XE,YV100XG etc.

    Model                             L*W*H(mm)        Weight                   Label Size
    LFYAMAHA-60 YV       620*90*205             5KG                   L:  2-40MM,w:5-58MM
    LFYAMAHA-100 YV     620*140*205          5.7KG                 L:2-40MM,w:5-98MM

    Precision:  ±0.2MM
    Feeding Speed: 1-100
    Feeding precision:  ±0.5°

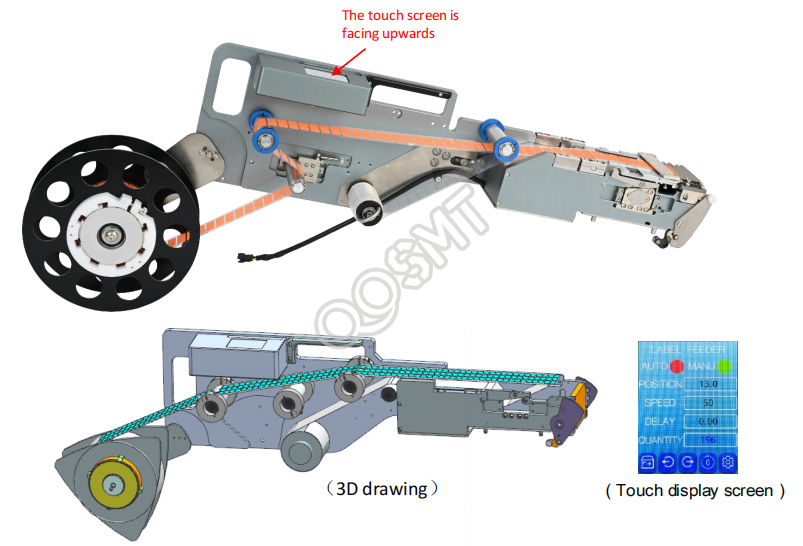

    Positon Adjustment:  Touch Panel Adj.
    Voltage:  DC 24V
    Current Average:  80MA Peak 1A
    Driving motor:  Servo motor
    Applicable package:  Roll paper tape Packaging Tape
    Suitable type:  LabelsMetal PiecesFoamPlastic…
    Columns per row:  1-12(The number of optical fibers can be customized)
    Time Interal:  0.1-2S
    Drive Roller Unit:  Forward push stripping
    Product account:  0-9999999n
    Wheel Diameter:  d：76.2mm D：200mm(Other sizes can be customized）
    Material:  Hard Aluminium+Finishing
    Platform material:  Metal spray selectable,White/Red Silica gel
