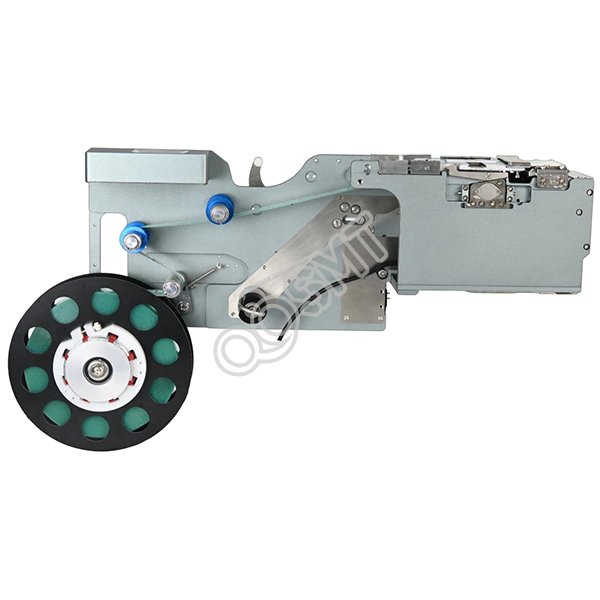

Samsung label feeder for Samsung/Hanwha SM series chip mounter
    • Samsung label feeder for Samsung/Hanwha SM series chip mounter

    Samsung label feeder for Samsung/Hanwha SM series chip mounter

    Samsung SM label feeder
    90mm

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS
    This label feeder model is suitable for the Samsung SM series pick-and-place machines, including SM320, SM321,SM411,SM411F,SM421,SM431,SM471,SM481,SM482, etc.

    Model                       L*W*H(mm)      Weight                   Label Size
    LFSUMSUNG-60     670*90*265           6KG             L:2-40MM,W:2-58MM


    Specifications
    Precision:  ±0.2MM
    Feeding Speed:  Speed1-100
    Feeding precision:  ±0.5°

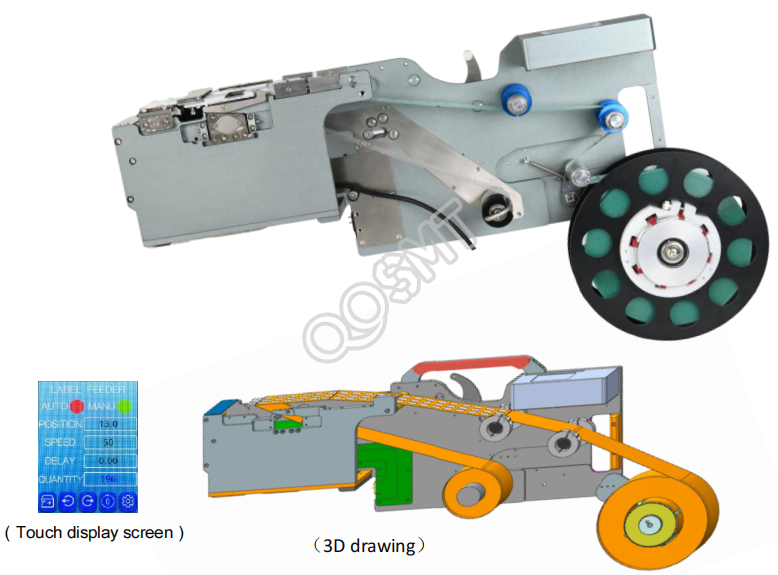

    Positon Adjustment:  Touch Panel Adj
    Voltage:  DC 24V
    Current Average:  80MA Peak 1A
    Driving motor:  Servo motor
    Applicable package:  Roll paper tape Packaging Tape
    Suitable type:  LabelsMetal PiecesFoamPlastic…
    Columns per row:  1-12(The number of optical fibers can be customized）
    Time Interal:  0.1-2S
    Drive Roller Unit:  Forward push stripping
    Product account:  0-9999999n
    Wheel Diameter:  d：76.2mm D：200mm(Other sizes can be customized）
    Material:  Hard Aluminium+Finishing
    Platform material:  Metal spray selectable,White/Red Silica gel
