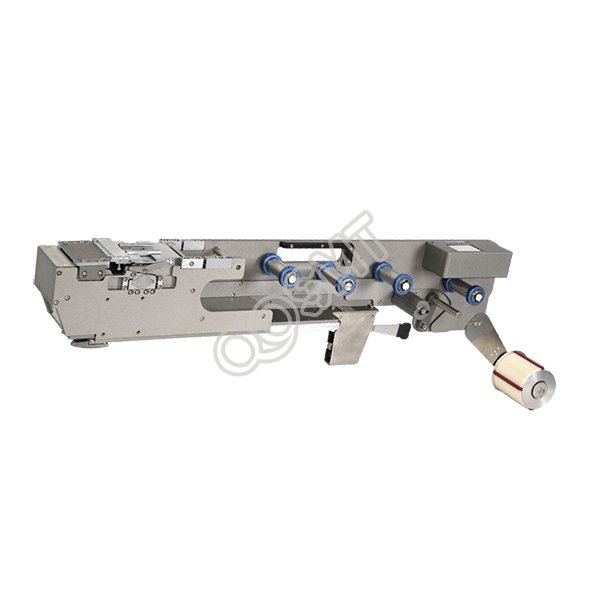

Panasonic label feeder for Panasonic NPM/CM602/CM402 pick and place machine
    • Panasonic label feeder for Panasonic NPM/CM602/CM402 pick and place machine

    Panasonic label feeder for Panasonic NPM/CM602/CM402 pick and place machine

    Panasonic label feeder
    40mm
    90mm
    135mm

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS
    This label feeder model is suitable for the Panasonic NPM/CM602/CM402 series pick-and-place machines, including NPM, CM602, CM402, etc.

    Model                 L*W*H(mm)            Weight                Label Size
    LEPANA-32         850*40*200              5.5KG       L:2-40MM,W:2-30MM
    LFPANA-60         890*90*280              7.8KG       L:2-40MM,W:2-58MM
    LFPANA-100       890*135*280            9.3KG       L:2-40MM,W:2-98MM


    Precision: ±0.2MM
    Feeding Speed: Speed1-100
    Feeding precision: ±0.5°

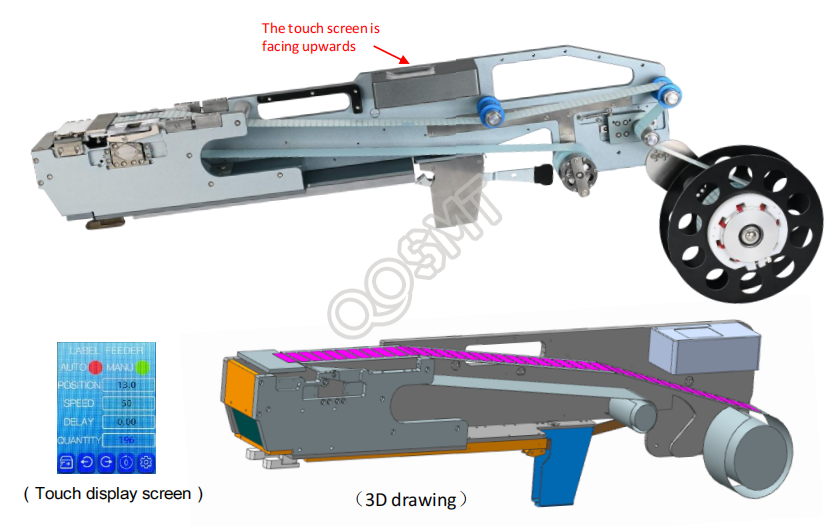

    Positon Adjustment:  Touch Panel Adj.
    Voltage:  DC 24V
    Current Average:  80MA Peak 1A
    Driving motor:  Servo motor
    Applicable package:  Roll paper tape Packaging Tape
    Suitable type:  LabelsMetal PiecesFoamPlastic…
    Columns per row:  1-12(The number of optical fibers can be customized）
    Time Interal:  0.1-2S
    Drive Roller Unit:  Forward push stripping
    Product account:  0-9999999n
    Wheel Diameter:  d：76.2mm D：200mm(Other sizes can be customized）
    Material Hard:  Aluminium+Finishing
    Platform material:  Metal spray selectable,White/Red Silica gel
