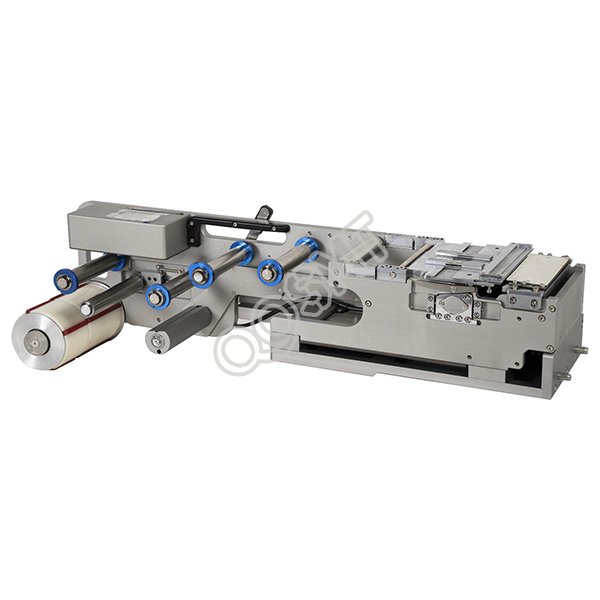

MIRAE label feeder for MIRAE pick and place machine
    • MIRAE label feeder for MIRAE pick and place machine

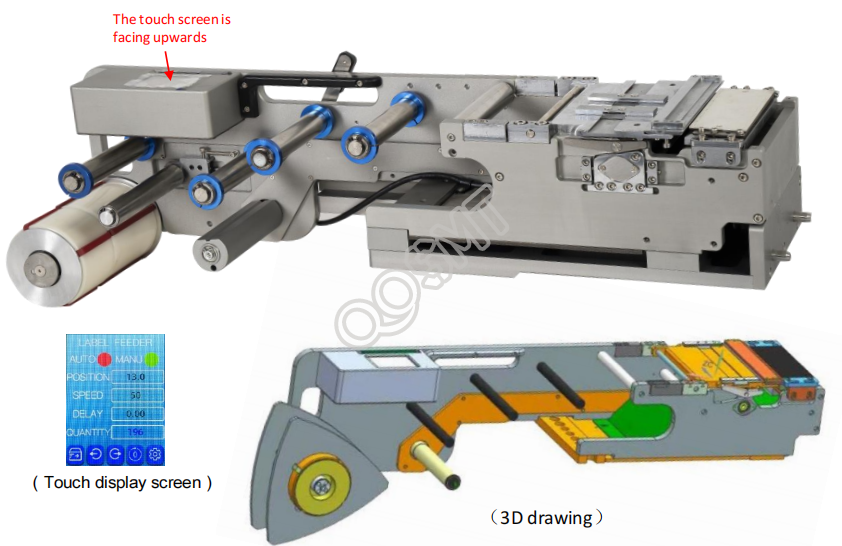

    MIRAE label feeder for MIRAE pick and place machine

    MIRAE label feeder
    135mm

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS
    This label feeder model is suitable for the MIRAE MX series pick-and-place machines, including MX100, MX200, MX400, MX300, MX800, etc.

    Model                      L*W*H(mm)       Weight                   Label Size
    LFMIRAE-100         640*135*155         8.6KG             L:2-40MM,W:2-98MM

    Specifications
    Precision:  ±0.2MM
    Feeding Speed:  Speed1-100
    Feeding precision:  ±0.5°
    Positon Adjustment: Touch Panel Adj
    Voltage:  DC 24V
    Current Average:  80MA Peak 1A
    Driving motor:  Servo motor
    Applicable package:  Roll paper tape Packaging Tape
    Suitable type:  LabelsMetal PiecesFoamPlastic…
    Columns per:  row 1-12(The number of optical fibers can be customized）
    Time Interal:  0.1-2S
    Drive Roller Unit:  Forward push stripping
    Product account:  0-9999999n
    Wheel Diameter:  d：76.2mm D：200mm(Other sizes can be customized）
    Material:  Hard Aluminium+Finishing
    Platform material:  Metal spray selectable,White/Red Silica gel
