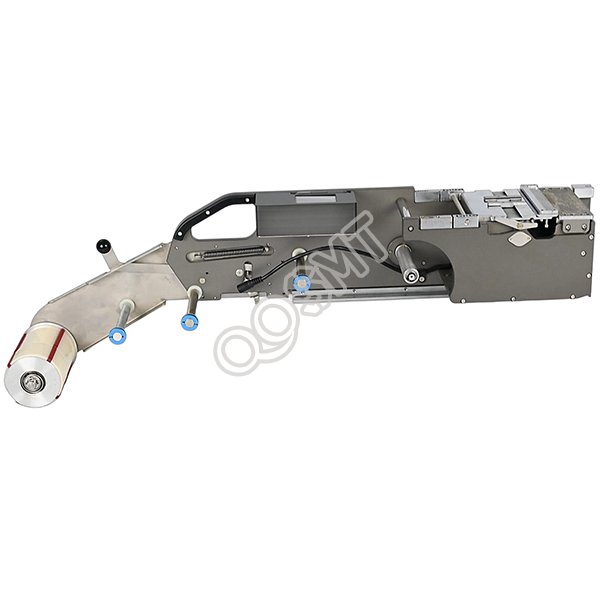

Universal label feeder for Universal chip mounter
    • Universal label feeder for Universal chip mounter

    Universal label feeder for Universal chip mounter

    Universal label feeder
    230mm

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS
    This label feeder model is suitable for the Universal GSM / GC / GX  series pick-and-place machines, including GSM1,GSM2,,GC30S,GC60,GC60D,GC120,GC120Q,GX-11S,GX-11D,GX-11SC,GX-37D, etc.

    Model           L*W*H(mm)       Weight                  Label Size
    LFUNI-100   785*230*155         7.7KG           L:2-40MM,W:2-98MM


    Specifications
    Precision: ±0.2MM
    Feeding Speed: Speed1-100
    Feeding precision: ±0.5°

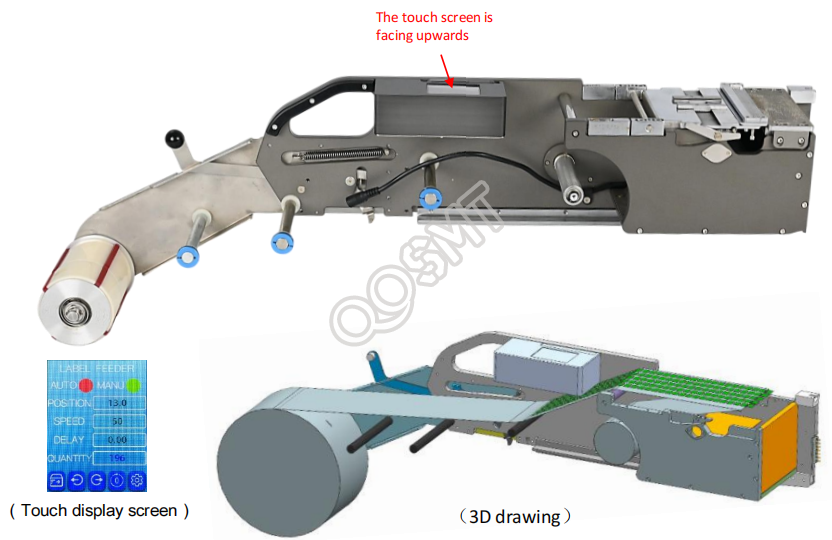

    Positon Adjustment:  Touch Panel Adj
    Voltage: DC 24V
    Current Average: 80MA Peak 1A
    Driving motor:  Servo motor
    Applicable package:  Roll paper tape Packaging Tape
    Suitable type:  LabelsMetal PiecesFoamPlastic…
    Columns per row:  1-12(The number of optical fibers can be customized）
    Time Interal:  0.1-2S
    Drive Roller Unit:  Forward push stripping
    Product account:  0-9999999n
    Wheel Diameter:  d：76.2mm D：200mm(Other sizes can be customized）
    Material:  Hard Aluminium+Finishing
    Platform material:  Metal spray selectable,White/Red Silica gel
