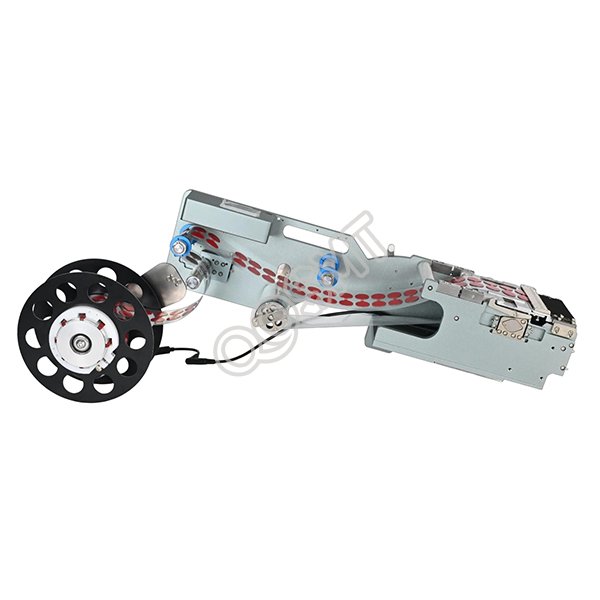

JUKI label feeder for JUKI KE700 KE2000 series pick and place machine
    • JUKI label feeder for JUKI KE700 KE2000 series pick and place machine

    JUKI label feeder for JUKI KE700 KE2000 series pick and place machine

    JUKI lable feeder
    40mm
    135mm

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS
    This label feeder model is suitable for the JUKI KE700/KE2000/FX/JX series pick-and-place machines, including KE750,KE760,KE2010,KE2020,KE2030,KE2040,KE2050,KE2060,KE2070,KE2080,FX-1,FX-1R,FX-2,FX-3,FX-3R,JX-100,JX-200, etc.

    Model            L*W*H(mm)         Weight                Label Size
    LFJUKI-32      630*40*170            3.8KG           L:2-40MM,W:5-28MM
    LFJUKI-100    640*135*160          7.5KG           L:2-40MM,W:5-98MM


    Specifications
    Precision:  ±0.2MM
    Feeding Speedy:  Speed1-100
    Feeding precision: ±0.5°
    Positon Adjustment:  Touch Panel Adj.
    Voltage:  DC 24V
    Current Average:  80MA Peak 1A
    Driving motor:  Servo motor
    Applicable package:  Roll paper tape Packaging Tape
    Suitable type:  LabelsMetal PiecesFoamPlastic…
    Columns per row:  1-12(The number of optical fibers can be customized）
    Time Interal:  0.1-2S
    Drive Roller Unit:  Forward push stripping
    Product account:  0-9999999n
    Wheel Diameter:  d：76.2mm D：200mm(Other sizes can be customized）
    Material:  Hard Aluminium+Finishing
    Platform material:  Metal spray selectable,White/Red Silica gel
