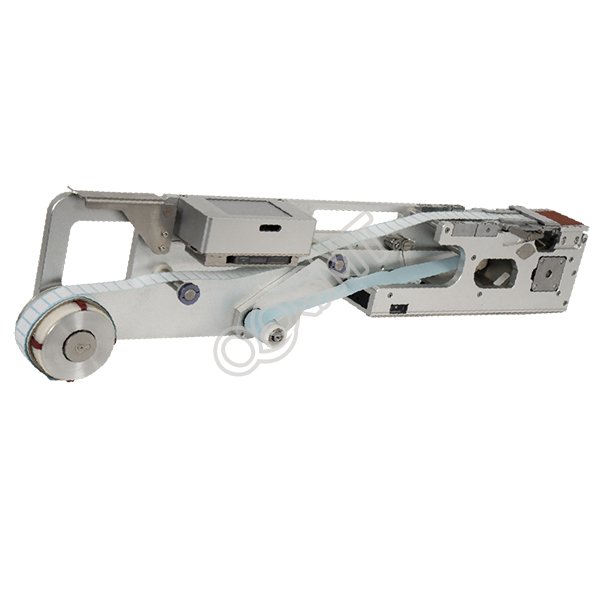

FUJI label feeder for FUJI NXT series chip mounter
    • FUJI label feeder for FUJI NXT series chip mounter

    FUJI label feeder for FUJI NXT series chip mounter

    FUJI label feeder
    40mm
    90mm

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS
    This label feeder model is suitable for the FUJI NXT series pick-and-place machines, including NXT I,NXT II, NXT III, etc.

    Model            L*W*H(mm)              Weight             Labe Size
    LFFUJI-32         630*40*170          3.6KG       L:2-40MM,W:2-30MM
    LFFUJI-100       660*90*170          5.6KG       L:2-40MM,W:2-58MM


    Precision:  ±0.2MM
    Feeding Speed:  Speed1-100
    Feeding precision:  ±0.5°
    Positon Adjustment: Touch Panel Adj.
    Voltage:  DC 24V
    Current Average:  80MA Peak 1A
    Driving motor:  Servo motor
    Applicable package:  Roll paper tape Packaging Tape
    Suitable type:  LabelsMetal PiecesFoamPlastic…
    Columns per row:  1-8 column
    Time Interal:  0.1-2S
    Drive Roller Unit:  Forward push stripping
    Product account:  0-9999999n
    Wheel Diameter:  d：76.2mm D：200mm(Other sizes can be customized）
    Material:  Hard Aluminium+Finishing
    Platform material:  Metal spray selectable,White/Red Silica gel
