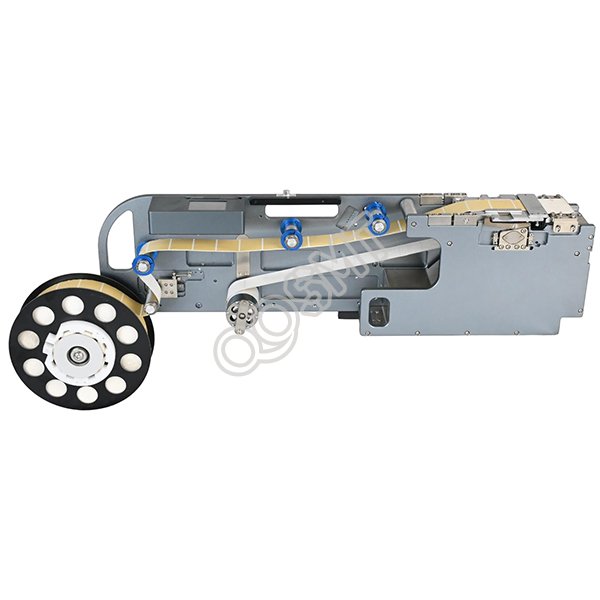

ASM label feeder for ASM Siemens X series chip mounter
    • ASM label feeder for ASM Siemens X series chip mounter

    ASM label feeder for ASM Siemens X series chip mounter

    ASM X label feeder
    45mm
    95mm

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS

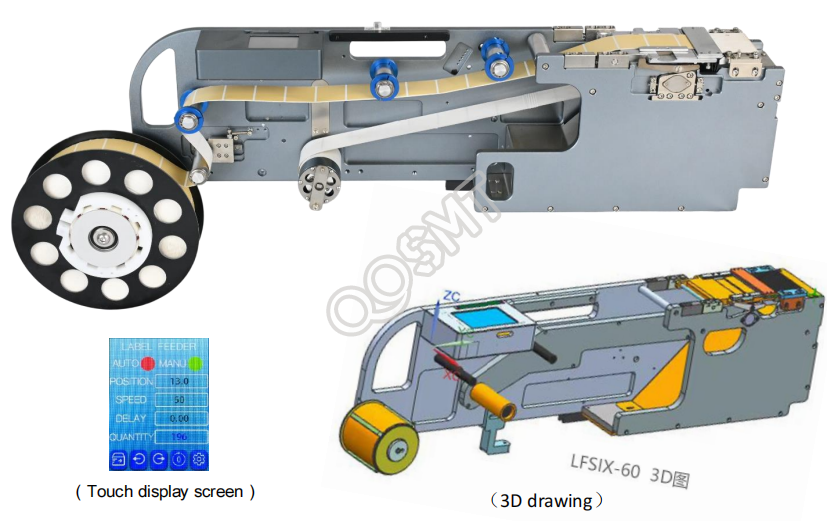

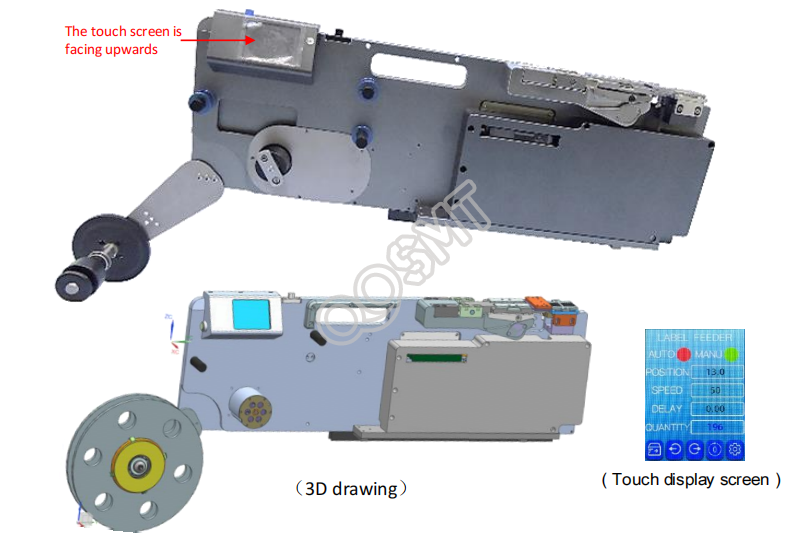

    This label feeder model is suitable for the ASM/Siemens X series pick-and-place machines.

    Model           L*W*H(mm)      Weight         Label Size
    LFSIX-32       750*45*190         5.5KG       L:2-40MM,W:2-30MM
    LFSIX-60       645*95*190         7.2KG       L:2-40MM,W:2-58MM

    Specifications
    Precision:  ±0.2MM
    Feeding Speed:  Speed1-100
    Feeding precision:  ±0.5°
    Positon Adjustment: Touch Panel Adj.
    Voltage:  DC 24V
    Current Average:  80MA Peak 1A
    Driving motor:  Servo motor
    Applicable package:  Roll paper tape Packaging Tape
    Suitable type:  LabelsMetal PiecesFoamPlastic…
    Columns per row:  1-12(The number of optical fibers can be customized）
    Time Interal:  0.1-2S
    Drive Roller Unit:  Forward push stripping
    power supply:  Adapter @Original power supply
    Product account:  0-9999999n
    Wheel Diameter:  d：76.2mm D：200mm(Other sizes can be customized）
    Material:  Hard Aluminium+Finishing
    Platform material:  Metal spray selectable,White/Red Silica gel
