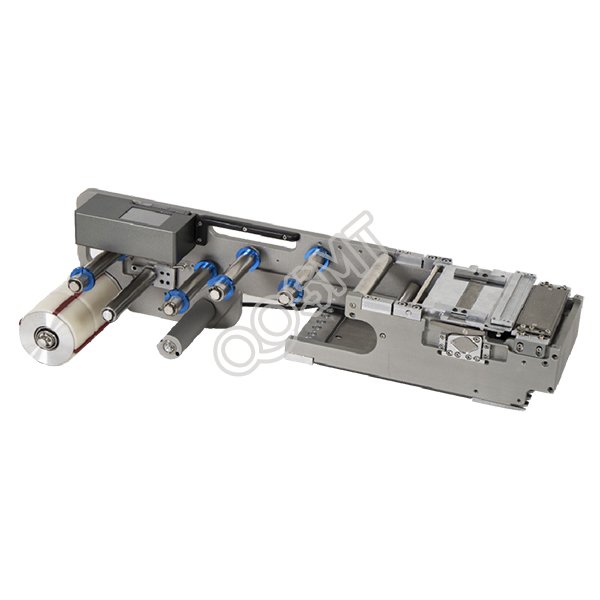

ASM Siemens lable feeder for Siemens D series mounter
    • ASM Siemens lable feeder for Siemens D series mounter

    ASM Siemens lable feeder for Siemens D series mounter

    Siemens D lable feeder
    45mm
    90mm
    135mm

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS

    This label feeder model is suitable for the Siemens D series pick-and-place machines, including D1,D1i,D2,D2i,D3,D3i,D4,D4i, etc.

    Model              L*W*H(mm)         Weight                       Label Size
    LFSID-100        640*135*155          8.6KG               L:2-40MM,W:2-98MM
    LFSID-60          710*90*255            6.1KG               L:2-40MM,W:2-58MM
    LFSID-32           635*45*180           3.5KG               L:2-40MM,W:2-30MM


    Specifications
    Precision: ±0.2MM
    Feeding Speed:  Speed1-100
    Feeding precision:  ±0.5°
    Positon Adjustment: Touch Panel Adj
    Voltage:  DC 24V
    Current Average:  80MA Peak 1A
    Driving motor:  Servo motor
    Applicable package:  Roll paper tape Packaging Tape
    Suitable type:  LabelsMetal PiecesFoamPlastic…
    Columns per row:  1-14(The number of optical fibers can be customized）
    Time Interal:  0.1-2S
    Drive Roller Unit:  Forward push stripping
    Communication signal:  Material signal+Feeding signal
    Product account:  0-9999999n
    Wheel Diameter:  d：76.2mm D：200mm(Other sizes can be customized）
    Material:  Hard Aluminium+Finishing
    Platform material:  Metal spray selectable,White/Red Silica gel
